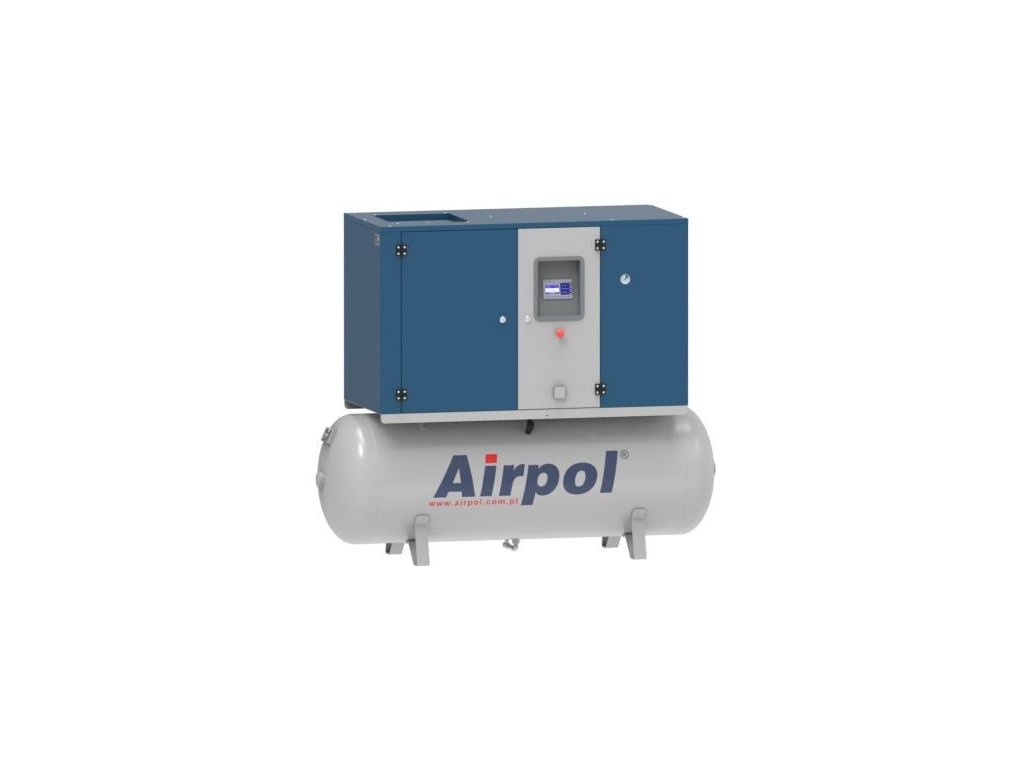

Kompresor 500L KT11 13 bar

Technická špecifikácia:

Discharge overpressure [MPa] - 1.3 Capacity [m3 / h] [1.3 MPa] 70 Overall dimensions (length x width x height) [mm] 1920x660x1520 Compressed air connection G 3/4 Weight [kg] 475 Tank capacity [l] 500 Ambient temperature [° C] +5 ÷ +40 Cooling air consumption [m? / h] 1800 Compressed air temperature [° C] approx. 10 above the ambient temperature Sound level [db (A)] 72 Drive transmission method belt transmission Nominal motor power [kW] 11 (IE3) Power supply [V / ph / Hz] 400/3/50 Recommended cross-section of the power cord [mm2] 5x4 Security [A] 32 Dryer pressure dew point [° C] +3 Comp. Purity class air according to ISO 8573.1 2.4.2
