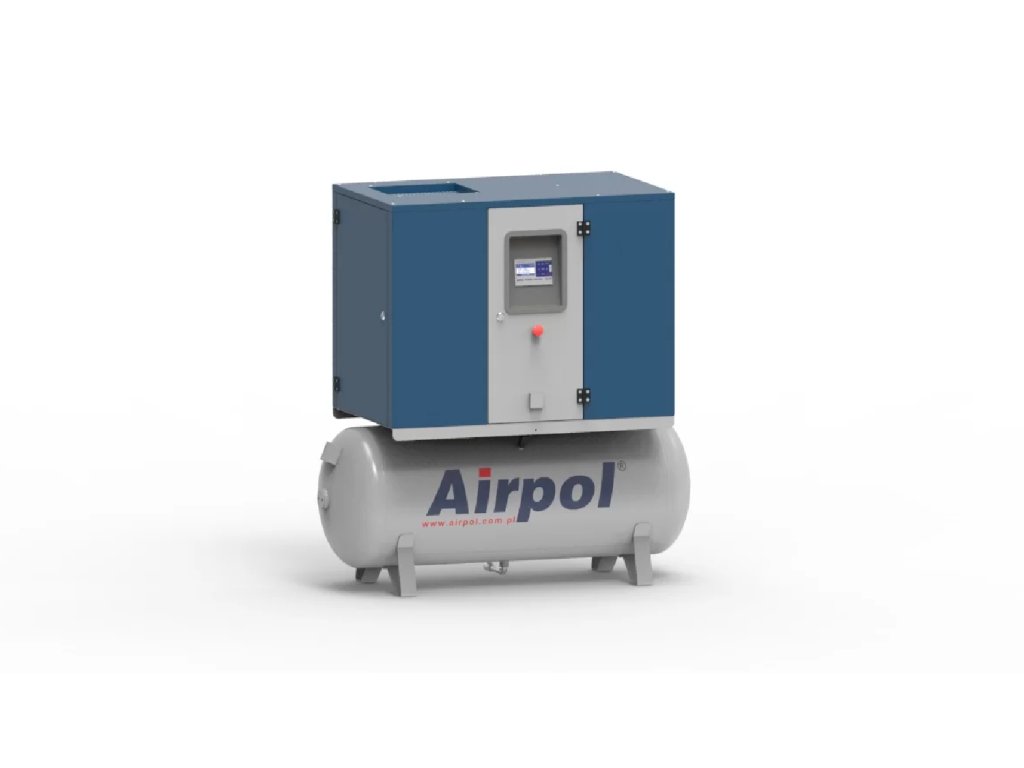

Kompresor 500l, 7,5 kW, max 10 bar

Technická špecifikácia:

Overpressure [MPa] - options 0,8 / 1,0 / 1,3 / 1,5 Fixed capacity: Capacity [m3/h] [ 0,8 MPa ] 68 Capacity [m3/h] [ 1,0 MPa ] 57 Capacity [m3/h] [ 1,3 MPa ] 47 Capacity [m3/h] [ 1,5 MPa ] 35 Dimension (LxWxH) [mm] 1920x660x1520 Air receiver volume [l] 500 Compressed air connection G 3/4 Weight [kg] 370 (0,8-1,0 MPa) / 420 (1,3-1,5 MPa) Ambient temperature [°C] +5 ÷ +40 Cooling air demand [m?/h] 1200 Compressed air temperature on the outlet [°C] approx.10°C degrees above ambient temperature Sound level L [dB(A)] 72 Power transmission system belt drive Nominal motor power [kW] 7,5 Energy efficiency class / Motor IP Code IE3 / IP55 Feed voltage [V/ph/Hz] 400/3/50 Recommended power feed cable [mm2 ] 4x4 Protection fuse [A] 25
