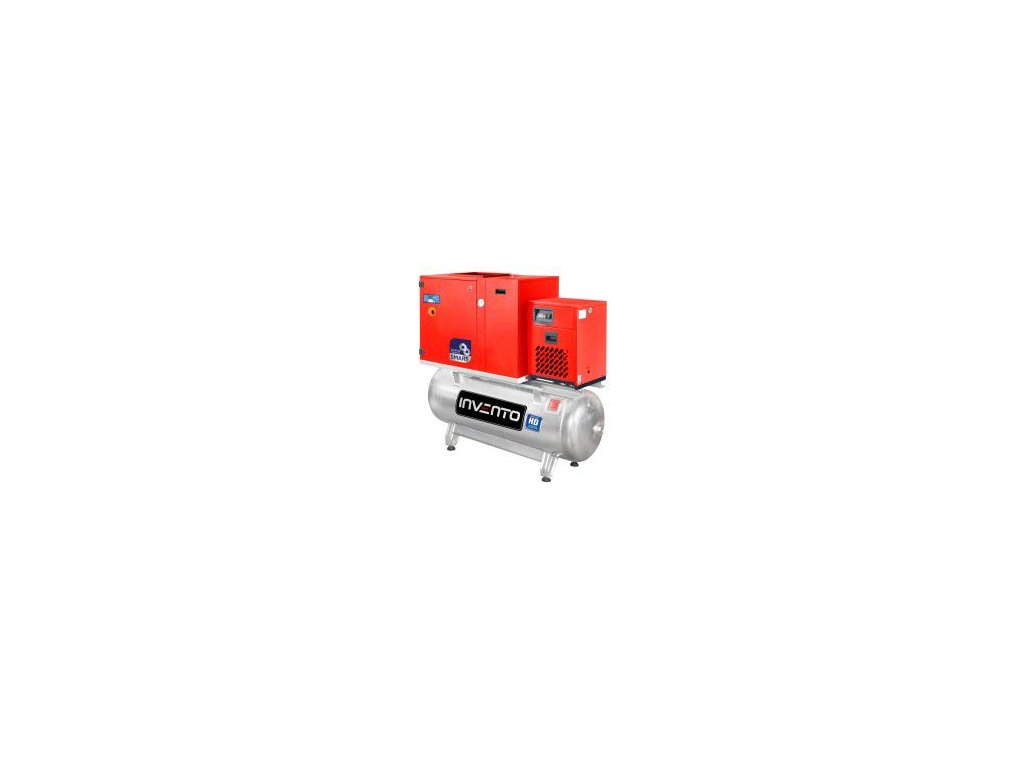

Kompresor, 500 l, 13 bar 7,5 kW, 400 V

Technická špecifikácia:

Capacity: 780 l / min. Capacity: 47 m3 / h Tank capacity: 500 l Max pressure: 13 bar Power: 7.5 kW Power supply: 400V Sound pressure level: 70 dB Dimensions W x D x H: 1980 x 770 x 1 420 mm Weight: 415 kg Electric cable: yes Pre-filter [dust]: no Fine filter [water / oil]: >0,5 mg/m3 Very fine filter: >0,01 ?m Dryer: yes Reducer: no Couplings: no Direct connection to the tank: yes Air outlet: 1/2" Cross-section of the cable: 5 x 2.5 mm2 Fuse: D25 A Protection against power drop in the electricity network: yes Power supply phase loss protection: yes Protection against the wrong direction of rotation of the motor: yes Motor overload protection: yes Protection against too high oil temperature: yes Protection against too low oil temperature: yes Safety valve: yes Tank drain valve: yes Automatic condensate drain: yes Tank protection: zinc plated Tank type: horizontal
