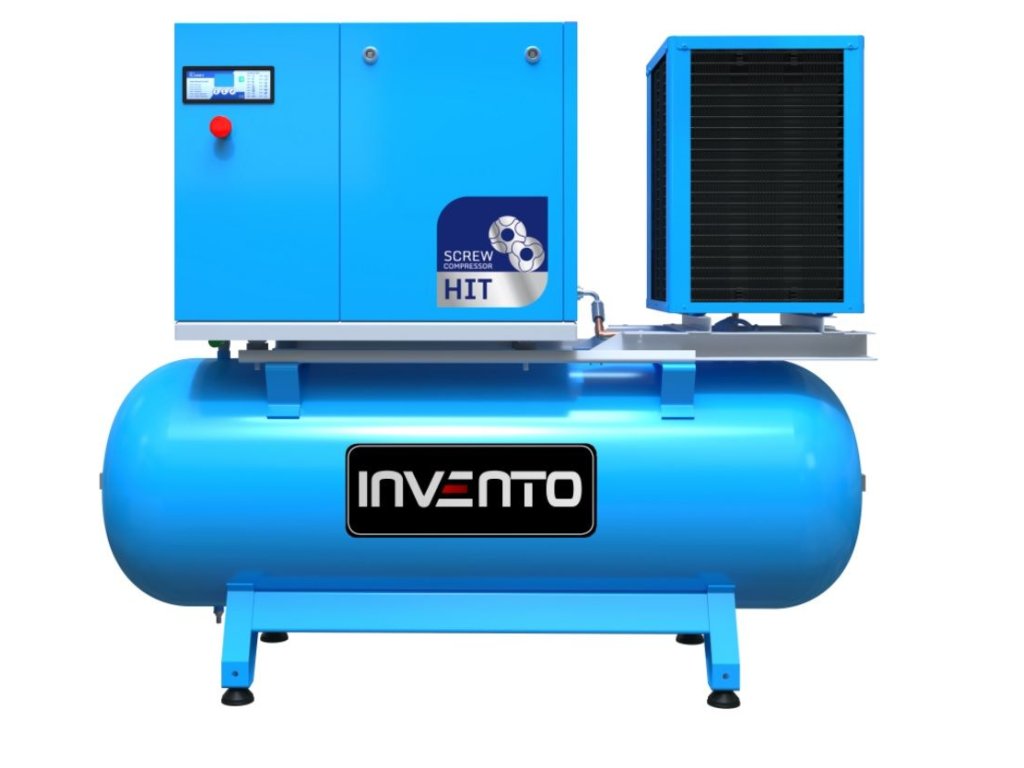

Kompresor, 500 l, 10 bar, 7,5 kW, 400 V HT710

Technická špecifikácia:

Capacity: 900 l / min. Capacity: 54 m3 / h Tank capacity: 500 l Max pressure: 10 bar Power: 7.5 kW Power supply: 400V Sound pressure level: 68 dB Dimensions W x D x H: 1965 x 650 x 1 350 mm Weight: 254 kg Electric cable: yes Pre-filter [dust]> 25 ?m Fine filter [water / oil]: no Very fine filter: no Dryer: yes Reducer: no Couplings: no Direct connection to the tank: yes Air outlet: 1/2" Cross-section of the cable: 4 x 2.5 mm2 Fuse: D20 A Protection against power drop in the electricity network: yes Power supply phase loss protection: yes Protection against the wrong direction of rotation of the motor: yes Motor overload protection: yes Protection against too high oil temperature: yes Protection against too low oil temperature: yes Safety valve: yes Tank drain valve: yes Automatic condensate drain: no Tank protection: powder coating Tank type: horizontal
